Determine The Resultant Moment Produced By The Two Forces About Point O

Determine the resultant moment produced by the two forces about point O. Express the result as a Cartesian vector.

Determine The Resultant Moment Produced By The Forces Chegg Com

Solve the problem first by considering each force as a whole and then by using the principle of momentsUnits UsedkN 103 NGivenF1 250 N a 2 mF2 300 N b 3 mF3 500 N c 4 m1 60 deg d 32.

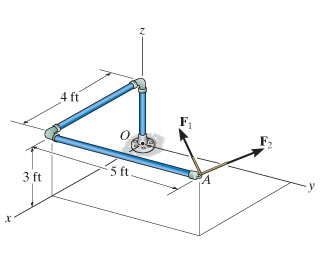

Determine the resultant moment produced by the two forces about point o. ProblemF412 32 Moments in 3D Wednesday September 19 2012 If F 1 100i 120j 75k lb and F 2 -200i 250j 100k lb determine the resultant moment produced by these forces about point O. The magnitude of the moment produced by F along a-a is then 3 7 2 7 6 7 0ft4ft0ft 400lb400lb200lb 3 7 0ft 400lb 2 7 4ft 400lb 3 7 800ftlb 2 7 0 6 7 1600ftlb 7200ftlb 7 102857ftlb 34 Moments Along an Axis Couples Monday. Express the result as a Cartesianvector.

To solve this question we will be using part 1 and part 2 from the previous questions. Determine the resultant moment produced by the two forces about point O. Determine the resultant moment produced by the two forces about point O.

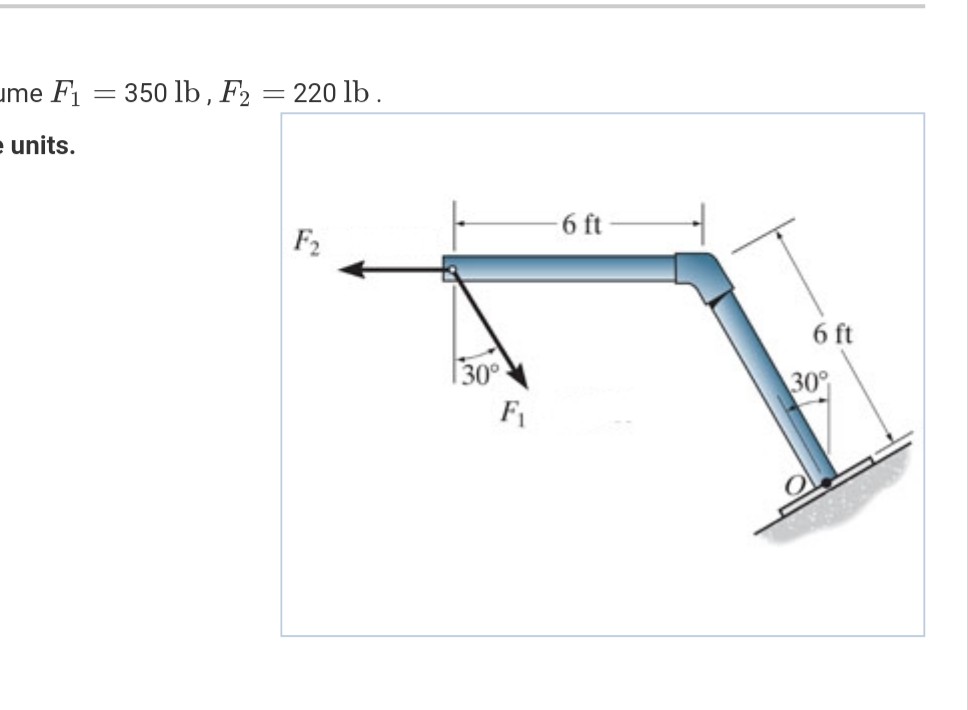

Determine the resultant moment they create about the flange at O. LoginRegister CHAT WITH US Call us on. Solution Position vectors are directed from point O to each force as shown.

Express the result as a Cartesian vector. Resultant Moment of a System of Forces. Determine the resultant moment produced by forces FB and FC about point O.

005 04 m 800 N Case 1 005 m 04 m 800 N Case 2 For I offset we have 80004 -4000005 120 N n Counterclockwise For 2 with we have 520 N m Counterclockwise Ans Atu. F 500 N 0125 m 03 m 3 4 60 025 m F2 600. Determine the resultant moment produced by the two forces about point O Express from GNE 212 at Lebanese American University.

Let us express force FC in Cartesian. Express the result as a Cartesian vector. M_ O1left -1800irightNcdot m M O1.

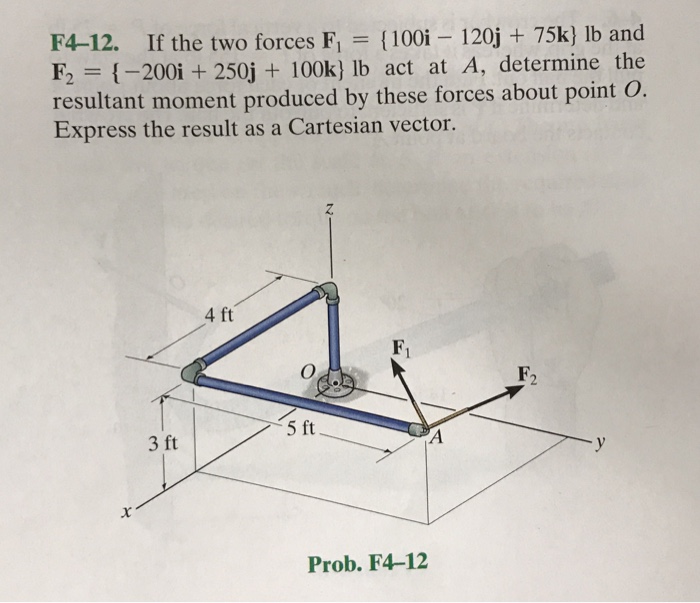

Express the result as a Cartesian vector. Mechanical Engineering QA Library f the two forces F1100i-120j75k lb and F2-200i250j100k lb act at A determine the resultant moment produced by these forces about point O. Express your answer in terms of the unit vectors Ij and k.

These vectors are The resultant moment. F1 x 50045 F1 y 50035 F2 x 600cos60 F2 y 600sin60 The problem for me is when it comes time to add their moments. Express the result as a Cartesian vector.

f the two forces F1100i-120j75k lb and F2-200i250j100k lb act at A determine the resultant moment produced by these forces about point O. Please dont mistake r OA for the moment arm. Determine the magnitude of the resultant moment produced by the forces about point O Determine the direction of the resultant moment produced by the forces about point O I first break the forces down to their components.

You must be signed in to discuss. Point on a-a and find the moment of the force F about that point. Take moment about point O M r.

Determine the moment produced by force F_C about point O. Express your answer in terms of the unit vectors Ij and k. Determine the resultant moment produced by the two forces about point O Figure 1.

Determine the moment of the force about point O. Determine the resultant moment produced by the two forces about point O. LoginRegister CHAT WITH US.

Determine the resultant moment produced by the two forces about point O. Express the result as a Cartesianvector. Can I get your number i need contact with you by.

Load as shown determine the resultant moment of these loads about point O on the axle for both cases. If a body is acted upon by a system of forces the resultant moment of the forces can be determined by vector addition of the moment of each force. Express the result as a Cartesian vector.

Take moment about point A. Express the result as a Cartesian vector. Express the result as a Cartesian vector.

Express the result as a Cartesian vector. Express the result as a Cartesian vector. I am taking counter clockwise to be.

Resultant Moment of a System of Forces Resultant moment of forces about point O can be determined by vector addition M RO r F Example Two forces act on the rod. This resultant can be written as. Determine the moment of force F about point O.
